6063 T6 Aluminum Sheet Plate 28.5mm Thickness Hard Aluminium Sheet

Name: 6063 T6 Aluminum Sheet Plate 285mm Thickness Hard Aluminium Sheet
Brand: HUANYU
Price: 3499 USD

Quality 6063 T6 Aluminum Sheet Plate 28.5mm Thickness Hard Aluminium Sheet for sale

Brand Name : HUANYU

Model Number : HYAP6063T6

Place of Origin : CHINA

MOQ : 1 metric ton

Price : US$3499-US$3899/ metric ton

Payment Terms : T/T

Supply Ability : 478 metric tons per month

Delivery Time : 7 days

Packaging Details : plywood case

Thickness : 28.5mm

Density : 2.7 g/cc

Ultimate Tensile Strength : 186 MPa

Yield Tensile Strength : 145 MPa

Melting Point : 616-654 Celsius Degree

Fatigue Strength : 68.9 MPa

Elongation at Break Percentage : 18%

Contact Now

Architectural 28.5mm Thickness High Quality Surface 6063 T6 Aluminum Sheet Plate

6063 is often called architectural aluminum for two reasons. First, it has a surface finish that is far smoother than the other commercially available alloys. Second, its strength is significantly less than most other aluminum alloys.

**6063 Typical Chemical Composition %**
Weight %	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Each	Total
Minimum	0.20				0.45
Maximum	0.60	0.35	0.10	0.10	0.90	0.10	0.10	0.10	0.05	0.15

Remainder Aluminum

Chemistry Information
Element	Percentage
Al	98.9
Cr	0.1 max
Cu	0.1 max
Mg	0.45 - 0.9
Fe	0.35 max
Mn	0.1 max
Si	0.2 - 0.6
Zn	0.1 max
Ti	0.1 max

**6063 Typical Mechanical Properties**
Temper	Tensile					Hardness
	Ultimate		Yield		Elongation	Brinell
	KSI	MPA	KSI	MPA	%
T5, T52	27	186	21	145	12	60
T6	35	241	31	214	12	73

6063 T6 Aluminum Sheet Plate 28.5mm Thickness Hard Aluminium Sheet

Product Tags:

aluminium flat plate

aluminum diamond plate sheets

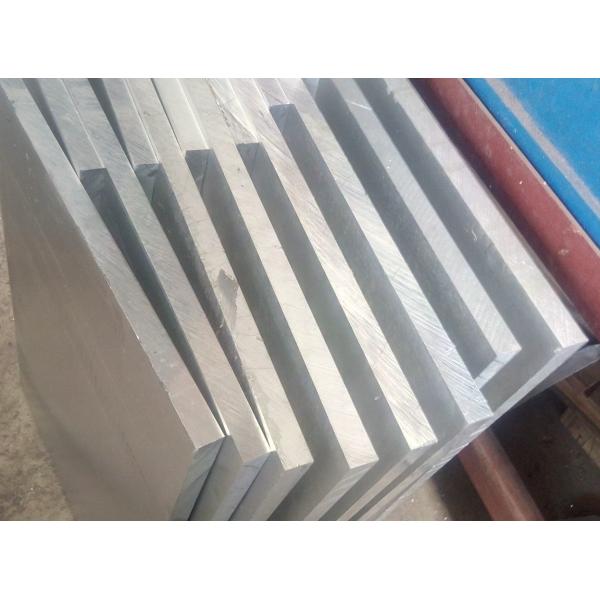

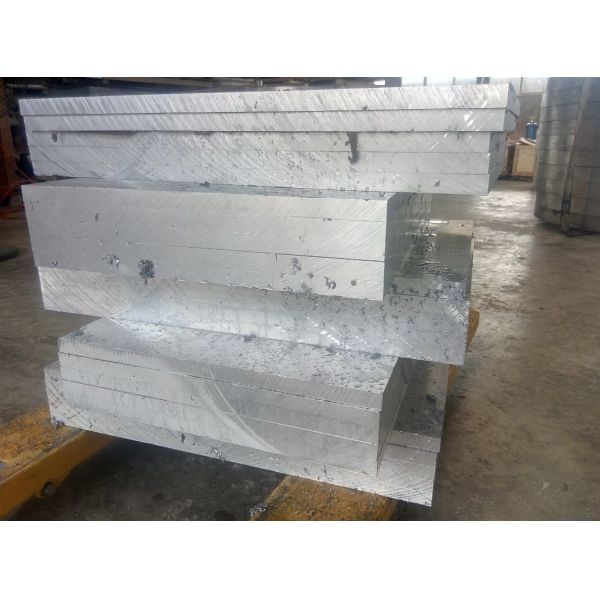

6063 T6 Aluminum Sheet Plate 28.5mm Thickness Hard Aluminium Sheet Images
