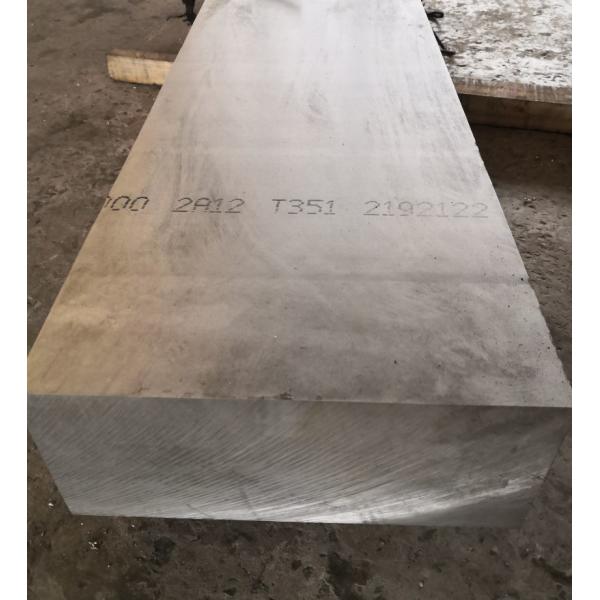

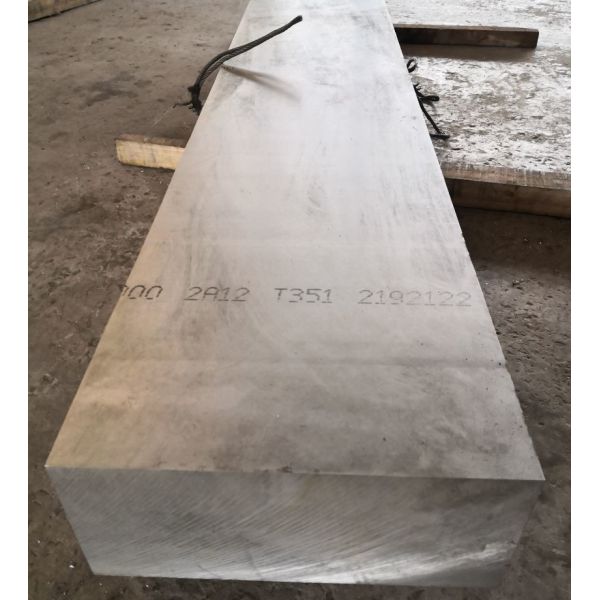

2A12 T351 Thickness 160mm Aircraft Grade Aluminum Sheet

Name: 2A12 T351 Thickness 160mm Aircraft Grade Aluminum Sheet
Brand: HUANYU
Price: 1 USD

Quality 2A12 T351 Thickness 160mm Aircraft Grade Aluminum Sheet for sale

Brand Name : HUANYU

Model Number : HYAP2A12

Place of Origin : CHINA

MOQ : 1 metric ton

Price : Negotiable

Payment Terms : T/T

Supply Ability : 120 METRIC TONS PER MONTH

Delivery Time : 35 DAYS

Packaging Details : plywood case

Enlongation : 18%

Tensile Strength : 66,000 PSI

Yield Strength : 58,000 PSI

Modulus of Elasticity : 10500 ksi

Coefficient of Thermal Expansion @ 20.0 - 100 °C Temp : 23.2 µm/m-°C | 12.9 µin/in-°F

Thermal Conductivity : 121 W/m-K | 840 BTU-in/hr-ft²-°F

Density : 2.77 grams per cubic centimeters

Width : 450mm

Thickness : 160mm

Material : 2A12

Temper : T351

Contact Now

2A12 T351 Thickness 160mm Aircraft Grade Aluminum Sheet Application On Airplane

2A12 is primarily alloyed with copper.
It also contains manganese and magnesium and can sometimes contain smaller amounts of silicon, iron, chromium, zinc and/or titanium.

2024 alloy is often chosen for applications that require high strength

Characteristics On 2A12-T4 Aluminum Sheets / Plates
Thermal Conductivity: 151 W/m-K | 1050 BTU-in/hr-ft²-°F
Coefficient of Thermal Expansion @ 20.0 - 100 °C Temp: 23.2 µm/m-°C | 12.9 µin/in-°F
Tensile Strength: 66000 psi
Yield Strength:58000 psi
Modulus of Elasticity: 10500 ksi

TYPICAL CHEMISTRY LIMITS:

Element	Minimum %	Maximum %
Silicon	No Min	0.5
Iron	No Min	0.5
Copper	3.8	4.9
Manganese	0.5	0.6
Magnesium	1.2	1.8
Chromium	No Min	0.1
Zinc	No Min	0.25
Titanium	No Min	0.15
Other Elements	No Min	0.05 each 0.15 in total

2A12 T351 Thickness 160mm Aircraft Grade Aluminum Sheet
